Products Yarn Testing Equipment’s Shore Hardness Tester - Analog (A type)

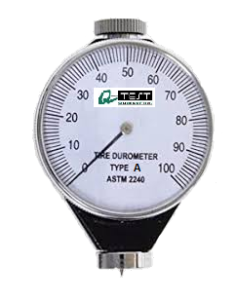

Shore Hardness Tester - Analog (A type)

Purpose

Soft vulcanised rubber & all elestometrics such as rubber, etc. hardness can be found out from this instrument.

Features

  • Soft vulcanized rubber and all elastometrics, such as: natural rubber, SBR, neoprene, nitrile rubbers, flexible polyester, cast resins etc.
  • Also used for wax, felt, leather & other materials such as cheese cones in textile industry.
  • Analog display with least count 1 shore A
  • Pin type indenter is provided.
  • For hard rubbers like Plastic Vinyl sheet etc. type D is used.
  • Primarily suggested intended for use up to maximum of 75 units in the range 10 to 90 Shore A - nos.

Related Standards:

  • DIN 53505, ASTM D 2240;

[Our Instrument comes with Calibration certificate traceable to NPL / NABL, Warranty certificate and detailed user manual].
