Garment Testing Equipments

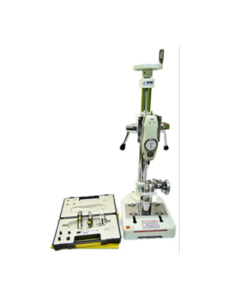

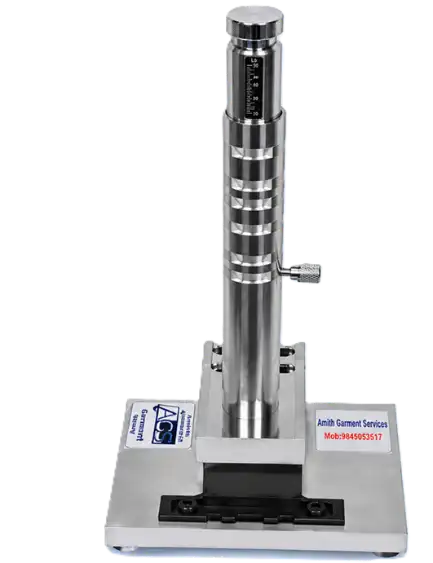

Used to measure impact resistance of buttons to impulsive force on buttons.

• 6 pre-determined heights from 32 mm to 117 mm give wide flexibility of testing.
• Dead Weight: 840 gm or 29.5 oz strictly meets the specification of American buyers.
• Completely made of Mild steel which is duly chrome plated for corrosion free life.
• Steel latch is used for releasing the weight

• ASTM D 5171

• Programs optimized for lowest water, energy and detergent consumption.
• High extraction forces for efficient dewatering.
• Automatic Savings weighs the linen and adjusts the water level to the amount of linen, saving water and energy at less than full load.
• Power Balance measures, corrects the unbalance and adjusts the G force in real time, maximizing the dewatering, saving money and time in the drying process.

• Meets IEC and ISO international standards.
• Suspended drum consturction allows a high extraction force.
• Dual water control of volume (weight) and level.
• Built in scale for precise volume control, accuracy:volume control +/- 0.2 litre/bath level control +/- 0.8 litre/bath.
• Equipped with Clarus Control® – a fully programmable electronic timer.
• Stainless steel drum assembly, front, side and top panel.

• Memory cards for IEC 60456, ISO 6330, M&S, H&M and other also can be supplied.

• Programmable wash programs to meet the laundry needs of different materials.
• The Labtex LBT-M6 model are chosen by the major brands in the world to meet the requirements of product testing such as Nike, Adidas, H&M,….
• Standard: AATCC LP1:2018, AATCC 88B, 88C, 124, 130, 135, 142, 143, 150, 159, 172, 179.

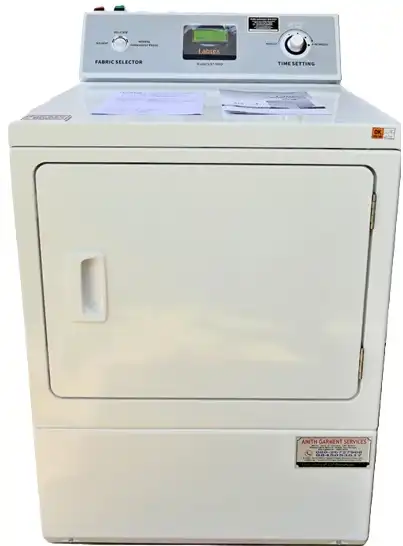

Specifications:

• Dying Capacity 20lbs / 9.1kg.
• Drum Volume 7.4 Cu.Ft.
• Automatic Dryer Sensor
• 8 Professional Dying Cycles
• 4 Temperature Settings
• Wrinkle Guard
• Large Side Opening Door
• Sound Insulation
• End of Cycle Signal
• Dimensions (H x W x D)
• 43.3 x 27.0 x 29.3 inch
• 1100 x 686 x 743 mm
• Gross Weight : 55kg

• Portable model with latest & modern aesthetics.
• Minimum detection level 2.5 mm.
• Buzzer will alert on detection of iron particles.
• Small garments/socks – up to maximum height of 50mm can be easily checked.
• Small in size & portable with all accessories.

• Portable model with latest & modern aesthetics.

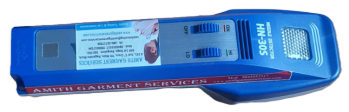

• This new handy type needle detector can detect φ0.8 mm steel at 5mm height from detecting unit surface.
• Buzzer will alert on detection of iron particles
•  It is easy to check the detecting result by adapting large size LED lamp.
• Highly accurate, hand-held model for spot detecting.
• When take it by hand, the machine starts automatically.
•  Under stand by, Battery mode is changed to save mode automatically and save battery consumption.
• The new handy type needle detector adopts Hi/Low sensitivity select switch.

• Portable model with latest & modern aesthetics.
• Minimum detection needle size 1.0 mm.
• Buzzer will alert on detection of iron particles.
• Handy model for spot checking of garments.
• Highly accurate, hand-held model for spot detecting.
• Small in size & portable with all accessories including case for safe transport for spot checking.

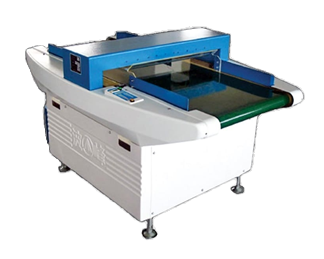

• Excellent Anti-disturbance performance.
• Based on LED bar displayed control panel.
• High accuracy detection locating technology, LED indication.
• Level setup indication and real-time sensitivity display.
• Optional conveying mode after alarm.
• Reliability mechanical frame design, high stable during detection.
• Designed for universal AC power supply, switch power supply.

• Our peel bond strength tester is handy instrument to measure bonding strength of any textile / coated material.
• Good instrument to measure efficiency of fusing machine
• laminating or coated machine.
• A relatively small but vital equipment for the garment manufacturers and exporters, interlining manufacturers, coated fabric manufacturers – fusing machine manufacturers.
• Max capacity – 3kg, Accuracy – 25 gms.
• The force gauge attached measure the force required to pull the bonded material layer from a base material in kg/ newtons.

• Our peel bond strength tester is handy instrument to measure bonding strength of any textile / coated material.
• Good instrument to measure efficiency of fusing machine/ laminating or coated machine.
• A relatively small but vital equipment for the garment manufacturers and exporters, interlining manufacturers, coated fabric manufacturers – fusing machine manufacturers.
• Digital display with maximum capacity up to 50 kg.
• The force gauge attached measure the force required to pull the bonded material layer from a base material in kg/ newtons.

•  pH of fabric/garment can be found out by cutting the fabric to pieces and boiling them in distilled water.

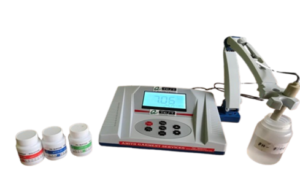

• Large back light LCD display shows mode indicators and help messages.
• Up to 3 points push-button calibration with auto-buffer recognition.
• Selectable pH buffer standards and temperature units.
• Automatically calculates and displays electrode slope after calibration.
• Automatic Temperature Compensation (ATC) ensures highly accurate measurements over the entire range.
• Automatic endpoint function freezes the stable measured values.
• Help message as a operational guide to helps you understand how to use meter.
• Setup menu lets user customizes buffer standards, calibration points, temperature units, automatic or manual hold function, auto-off feature to meet personal preferences.
• Reset function can resumes all settings to factory default values.

• AATCC 81, ISO 3071, M&S C7, Next TM33;

•  pH of fabric/garment can be found out by cutting the fabric to pieces and boiling them in distilled water.
• Can be carried from place to check pH content of any solution at the same source of solution itself.
• Slim, ergonomically design fits comfortably in the hand or pocket.
• Two-button operation, one for ON/OFF, other for calibration.
• Built in temperature sensor allows for quick automatic temperature compensated measurement.
• Automatic calibration to one or two points using standard buffer solution.
• A clock tag stability indicator will disappear to alert the user the reading is stable.
• Low battery indicator that is displayed when battery is less than 10% remaining.
• All size of Beakers, Conical flask, Wash bottles, Test tubes available with us at extra cost.

• AATCC 81, ISO 3071;

• Taring Range : Up to full capacity
• Response time : 3 secs
• Power Req : 90-250V, 50/60Hz, 10 Watt
• Operating Temperature: 10 to 45 deg C

• Bright LED display
• Clear and bright extra display for customer viewing at a distance
• 100 % tare facility
• Net & Gross weight indication
• Accumulation of weights in memory
• Rs. 232 interface to connect to a computer / printer
• Audio visual overload indication
• Optional Battery Backup.

Air permeability is the property of a fabric to allow passage of air through it under the effect of a difference in pressure across its two faces. It is defined as the volume of air passing through a defined area under a specified pressure difference over a known period of time. It is a very important property for fabrics that are used under conditions where it is necessary to know precisely the amount of air passing through them.

Technical Data

Test area : 10, 20, 50, and 100 cm²

Rotameters : 9 to 90; 57 to 570; 470 to 4,700; and 1,570 to 15,700 LPH

Pressure indicator : Electronic type with a pressure transducer and digital display to measure and indicate pressure upto 300 mm water column (least count 1 mm)

Related Standards

IS 11056 – 1984 : Method for Determination of Air Permeability of Fabrics

DIN 53887 : Testing of Textiles – Determination of the Air Permeability of Fabrics

ASTM D 737 : Standard Test Method for Air Permeability of Textile Fabrics.

Amit Garment Chlorine and Non-Chlorine Test Kit is very convenient way to test colour fastness to chlorine and non-chlorine bleach in textile fabrics.

Spot Test Kit for Chlorine and Non-Chlorine Bleach includes following chemicals:

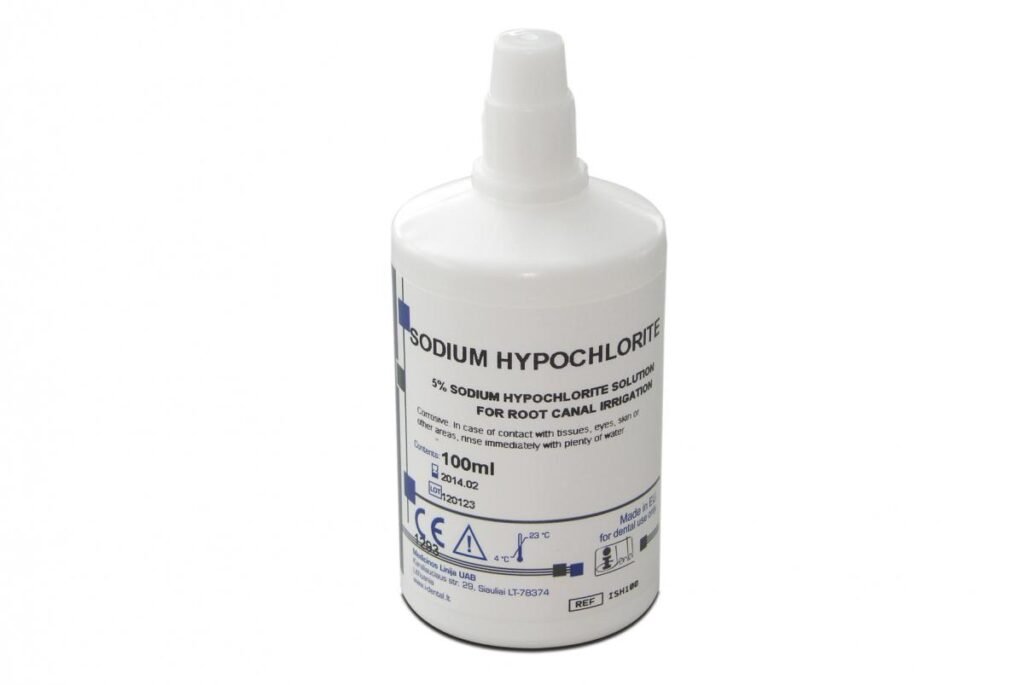

Sodium Hypochlorite

Sodium Hydroxide

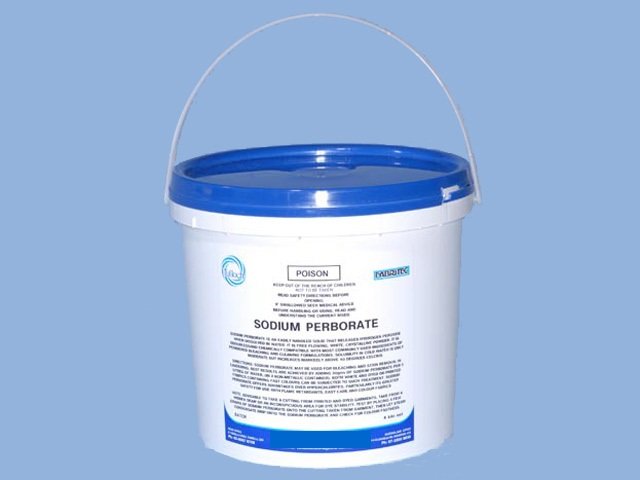

Sodium Perborate

Test Procedure:

Sodium Hypochlorite( chlorine Bleach):

Pour one drop of Sodium Hypochlorite solution on the test specimen.

Wait for one minute.

Wash the sample in normal water.

Dry it.

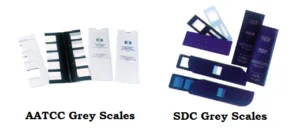

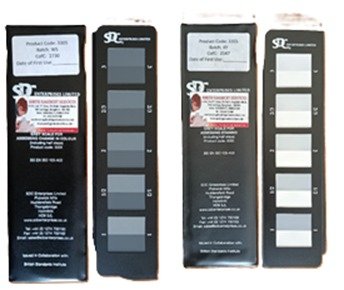

Now, grade with grey scale for colour change.

Sodium Hydroxide(Non-Chlorine Bleach):

Pour one drop of Sodium Hydroxide solution on the test specimen.

Wait for one minute.

Wash the sample in normal water.

Dry it.

Now, grade with grey scale for colour change.

Sodium Perborate (Non-Chlorine Bleach) Preparation of Solution:

Pour 10g of Sodium Perborate powder in 150 ml of distill water.

Pour one drop of Sodium Perborate solution on the test specimen.

Wait for one minute.

Wash the sample in normal water.

Dry it.

Now, grade with grey scale for colour change.

Actual colour of fabric / yarn / paper / button / lining / paint test specimen can be compared with original specimen under different standard.

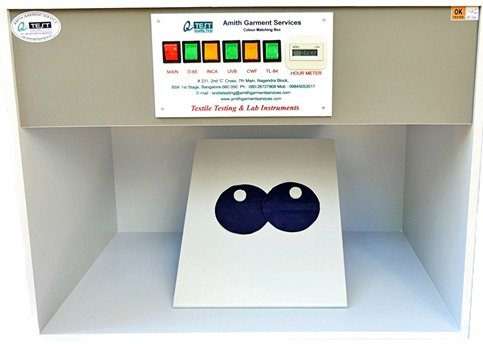

• This is an important equipment of textile industry and is suitable for almost all applications that require colour consistency and quality.
• Colour matching cabinet is the equipment designed for the visual evaluation of shade and colour differences under standardized and controlled lighting conditions.
• It is ergonomically designed and consist of light source like D65, TL84, INCA, UV, CWF.
• Interior paint with Munsell as per International Standards or Sun mica wood of standard colour.
• Easy to handle as each light can be operated separately with buttons individually.
• Supplied with 45-degree angle table for viewing fabrics/yarns/sewing thread without any distractions.
• Supplied with German hour meter for measuring usage of light sources.
• Other light sources like TL83 (H & M), U30, D75 can be supplied optionally.

• ISO 3664, BS 950, DIN 6173, ASTM D 1729, JIS Z 8723

We offer various standard lamps from Philips/GE/Macbeth/verivide for color matching in textiles like fibre/yarn/fabric/garment and any kind of garment accessories.These lamps meet CIE specifications and offer lux levels and CRI index as per standards.

Lamps offered are :

D75: A bluish colored light source originally used for grading cotton & their evaluation applications. It offers 7500K.

D65: A light bluish colored light source used in color matching applications of paints,textiles,raw inks and other manufactured products. It offers 6500K.

D50: A near white light source used in the evaluation of graphic arts and imaging applications. It offers 5000K.

Ultra violet: Light energy not normally visible to human eye, but which is present in natural daylight.

Cool White Fluorescent (CWF) – A wide band single phosphor fluorescent source commonly used in commercial lighting applications . It is characterized by emitting high amounts of green energy, with a color temperature of approximately 4100K. It has a CRI or approximately 62.

TL84 – A narrow band tri-phosphor fluorescent source originally designed for commercial lighting applications . It is characterized by emitting high amounts of green energy, with a color temperature of approximately 4100K. It has a CRI of approximately 86.

TL830 – A narrow band tri-phosphor fluorescent source originally designed for commercial lighting applications . It is characterized by emitting high amounts of yellowish red energy, with a color temperature of approximately 3000K. It has a CRI of approximately 86.

Ultralume 30 (U30 or 30U) – A narrow band tri-phosphor fluorescent source originally designed for commercial lighting applications . It is characterized by emitting high amounts of yellowish red energy with a color temperature of approximately 3000K. It has a CRI of approximately 85.

Ultralume 35 (U35 or 35U) – A narrow band tri-phosphor fluorescent source originally designed for commercial lighting applications . It is characterized by emitting high amounts of reddish yellow energy with a color temperature of approximately 3500K. It has a CRI of approximately 85.

Illuminant A – is a standardized illuminant described in the international standard, CIE Publication 15.2 and specified for use in color matching applications in ASTM D1729-96.It offers 2865 K

Horizon – Reddish in color source described in older specification and used for color matching applications.It offers 2300K.

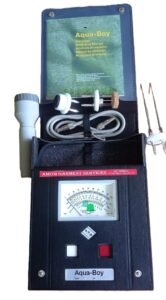

To determine the moisture content in textile like cotton, polyester, viscose, silks etc.

• Determine the residual moisture content in textile like Cotton, Polyester & Viscose materials in terms of percentage.
• Portable construction; ergonomically designed.
• Enables strict moisture measurement.
• Field calibration with the use of standard calibration probe.
• Back-lighted alphanumeric display; Microcontroller controlled digital circuitry.
• Built-in rechargeable battery power long for more than 5 hours of usage.
• Provided with sponged light-weight case and charging adaptor for easy mobility.
• Detachable electrodes for bale/cone/spools/loose cotton/fabric & yarn separately supplied based on request.

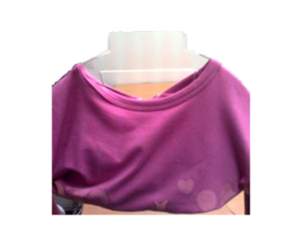

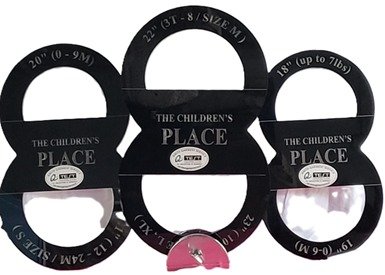

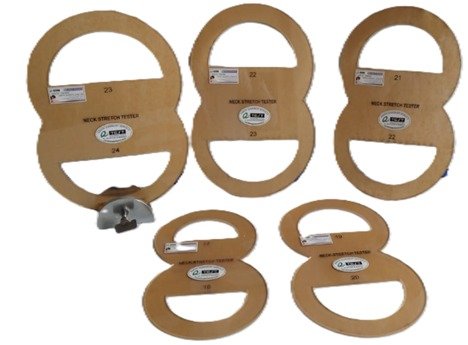

The instrument is suitable to check stretch ability of neck size of any knitted garment.

• Supplied with 1 jaw holder and 3 templates
• Fix the vice on the table with gum sticker or fix with knob.
• Insert garment on the template and check if garment can move easily.
• Neck size is same as template size in which garment moves easily.
• Sizes of template supplied are 25/26 cm, 27/28 cm, 29/30 cm.
