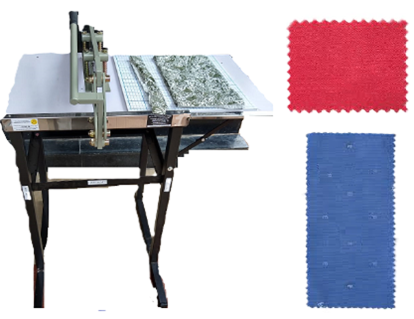

Swatch Cutting Machines

Used to prepare zig-zag fabric swatches for presentation to buyers in swatch card or folder form.

• The swatch cutter is used to prepare zig-zag fabric swatches for presentation to buyers in swatch card or folder form.

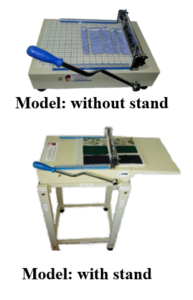

• Swatch cutter if ordered without stand – the equipment can be mounted on any table at customer place.
• Our Swatch Cutter comes in blade size of 12 ”.
• The machine offers effortless cutting of fabric swatches of up to 25mm height in any dimension – Rectangle or Square.
• Scale is provided on both pad and machine can facilitate cutting of fabric swatches of any pre-determined dimensions. (Maximum up to 12”).
• Machine is useful for making sample of woven/ knitted, non-oven, interlining and industrial fabrics.

• Effortless zig-zag cutting of suiting, shirting, blended woollen, denim, furnishing, knitted and tyre cord fabrics.
• Fabric can be accurately aligned before cutting
• A hand lever operated device with stopper is provided.
• To get to and fro motion of sliding table with calibration which guarantees the equal, accurate and high production of samples.
• Ideal for cutting maximum fabric heap of 50 mm and maximum 20 strokes per minute
• The main body of machine will be single piece, made from iron steel material so as to get smooth and vibration free operation.
• Machine will be completely covered and provided with safety guards.
• Provided with adjustable screw arrangement with eccentric to get the blade position to maximum upward or downward.

• Imported with titanium quoting.
• Easy handling.
• Long durable.
• Special pivot to make cutting operation easy.

• 4 Shaft Capacity – Ideal for start ups – “Easy to access levers” for shaft lifting.
• Weaving width 24″ (61cms) – Compactly designed to fit smaller space.
• Overhead Beater – Innovative design to beat the weft perfectly with the fell line.
• Steel Reed – 1 No. 10 dpi/12.5 dpi/16dpi.
• Timber – Made of Lacquered Beach Hard Wood – Aged and Treated to stay away from fungal attacks for years.
• Swedish Texsolv Heddles – Strong & Easy to use and soft on heads during drawing in and adding up additional heddles also possible.
• Warping Frame – To make 10-11 Mtrs of warp.
• Supplied with – 2 Nos. stick shuttles, Heddles Hook,Cross & Warp Sticks, Learn to weave on the table loom brooklet,Warping Frame.

• 8 Shaft Capacity – Possibility to learn versatile designs like Dobby, Satin, Sateen, Etc., – “Easy to access levers” for shaft lifting.
• Weaving width 24″ (61cms) – Compactly designed to fit smaller space.
• Overhead Beater – Innovative design to beat the weft perfectly with the fell line.
• Steel Reed – 1 No. 10 dpi/12.5 dpi/16dpi.
• Timber – Made of Lacquered Beach Hard Wood – Aged and Treated to stay away from fungal attacks for years.
• Swedish Texsolv Heddles – Strong & Easy to use and soft on heads during drawing in and adding up additional heddles also possible.
• Warping Frame – To make 10-11 Mtrs of warp.
• Supplied with – 2 Nos. stick shuttles, Heddles Hook, Cross & Warp Sticks, Learn to weave on the table loom brooklet, Warping Frame.

– With Electric Stop Motion

– With Steel Inserted Wall Cylinder & G.M Sinker Ring

– With Hardened & Grinded Cams

– With Cut Cam Plate CNC

– With Winder take down System

– With Motor Attachmed & Motor 0.5HP 3PH 960 RPM

– With Top Creel System

– With Auto Control Panel

– With Cam Box Feeder

– With Groz Beckert Needles 77.73 & Sinkers

– Dia : 1, Feeder : 1, Needle : 120

To staple cut fabric samples
